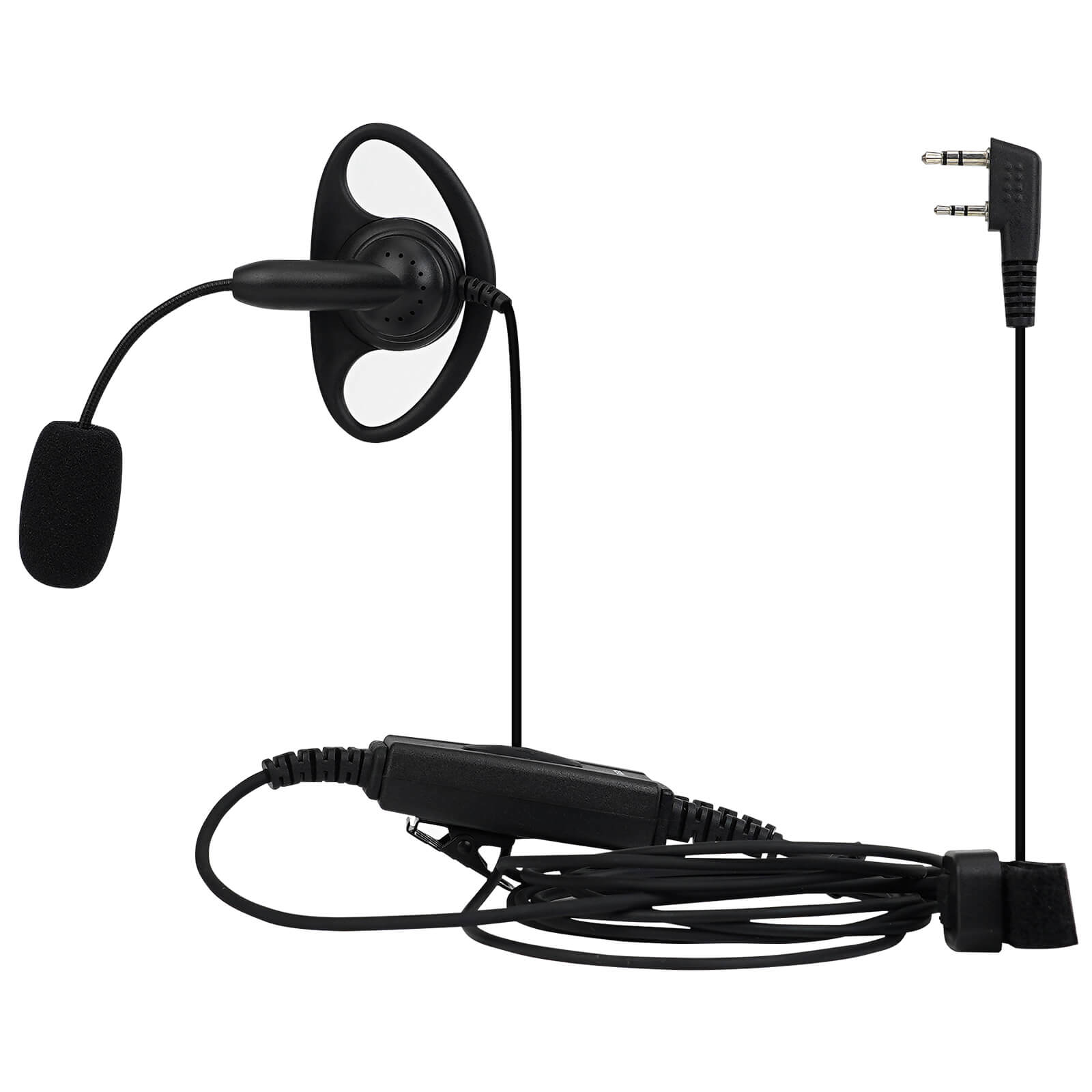

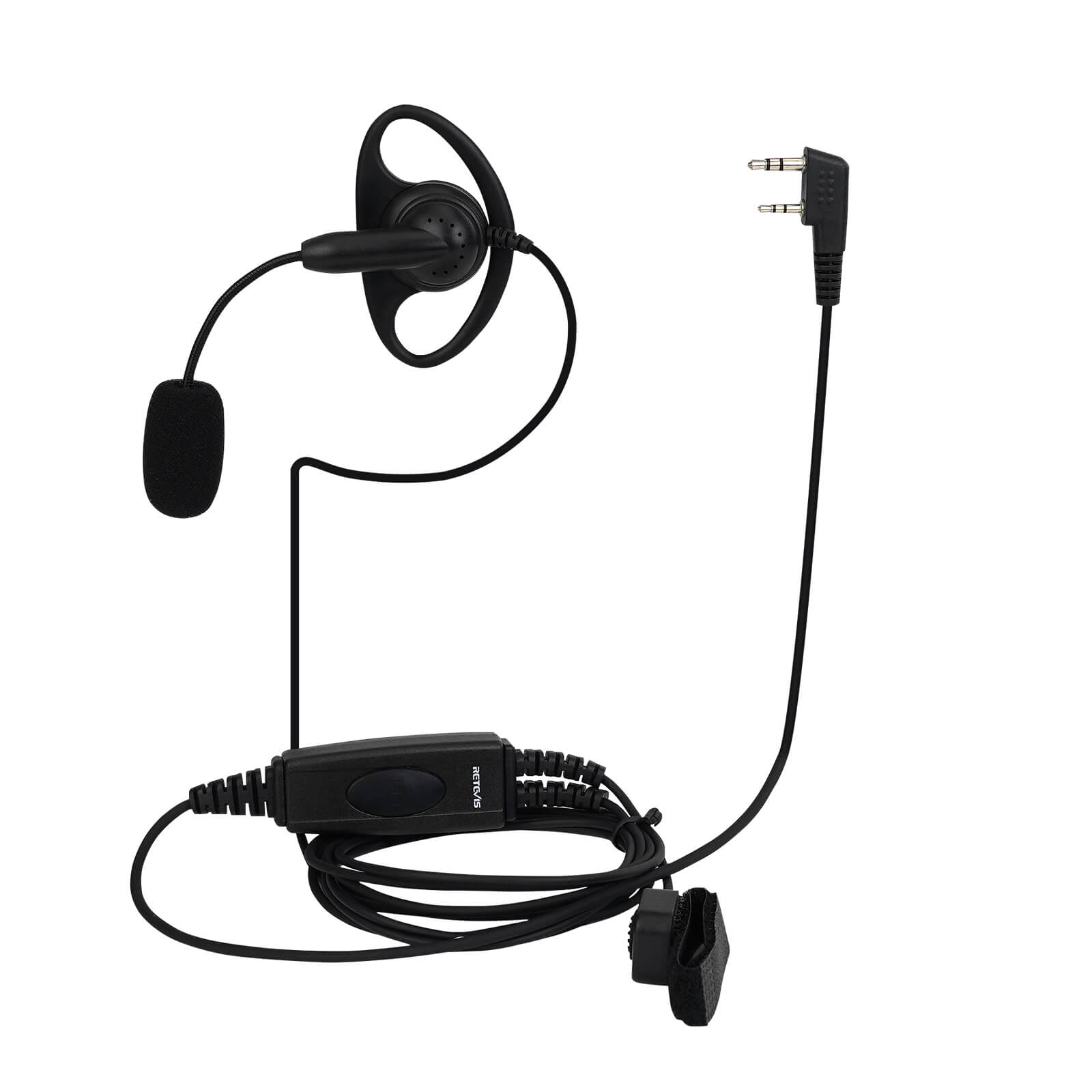

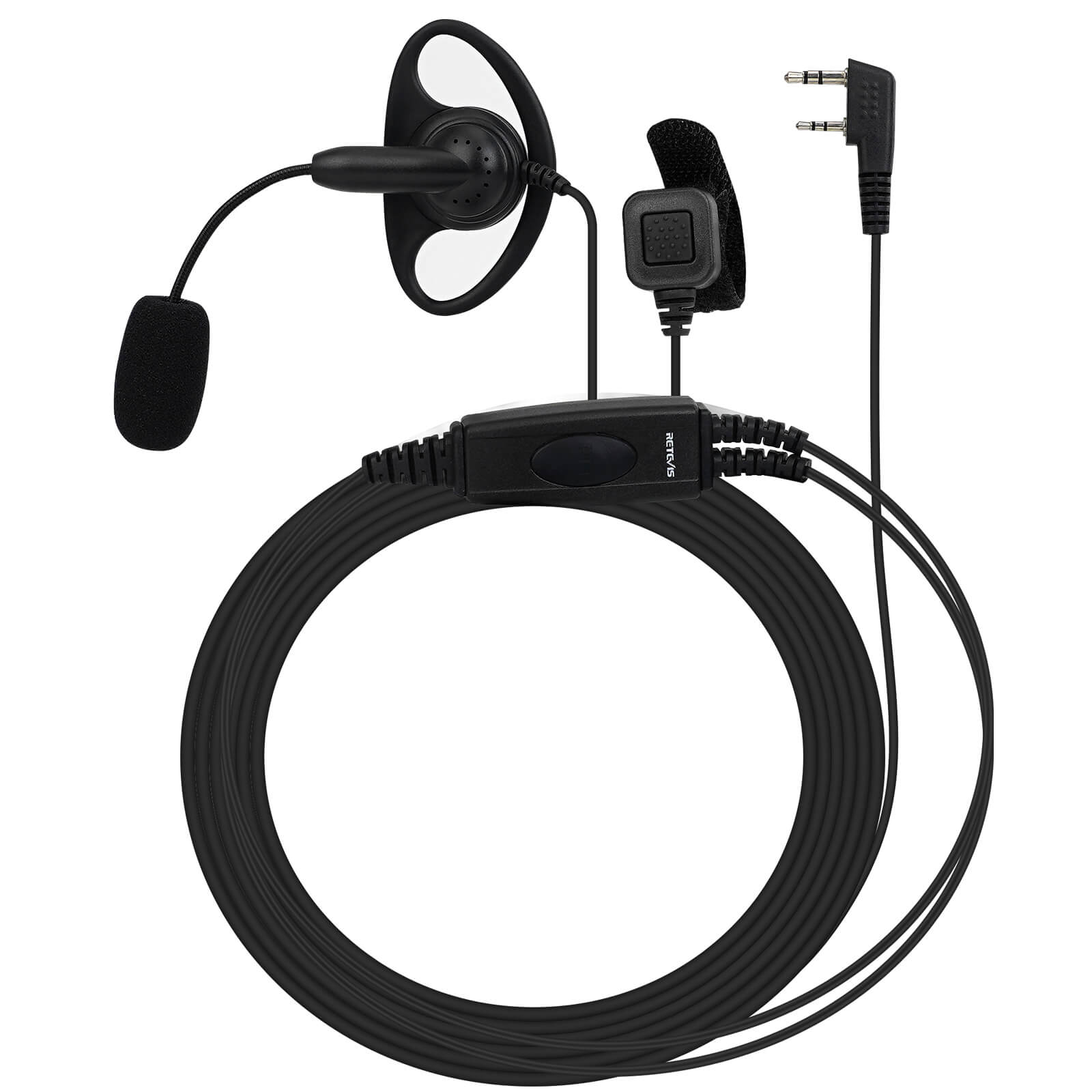

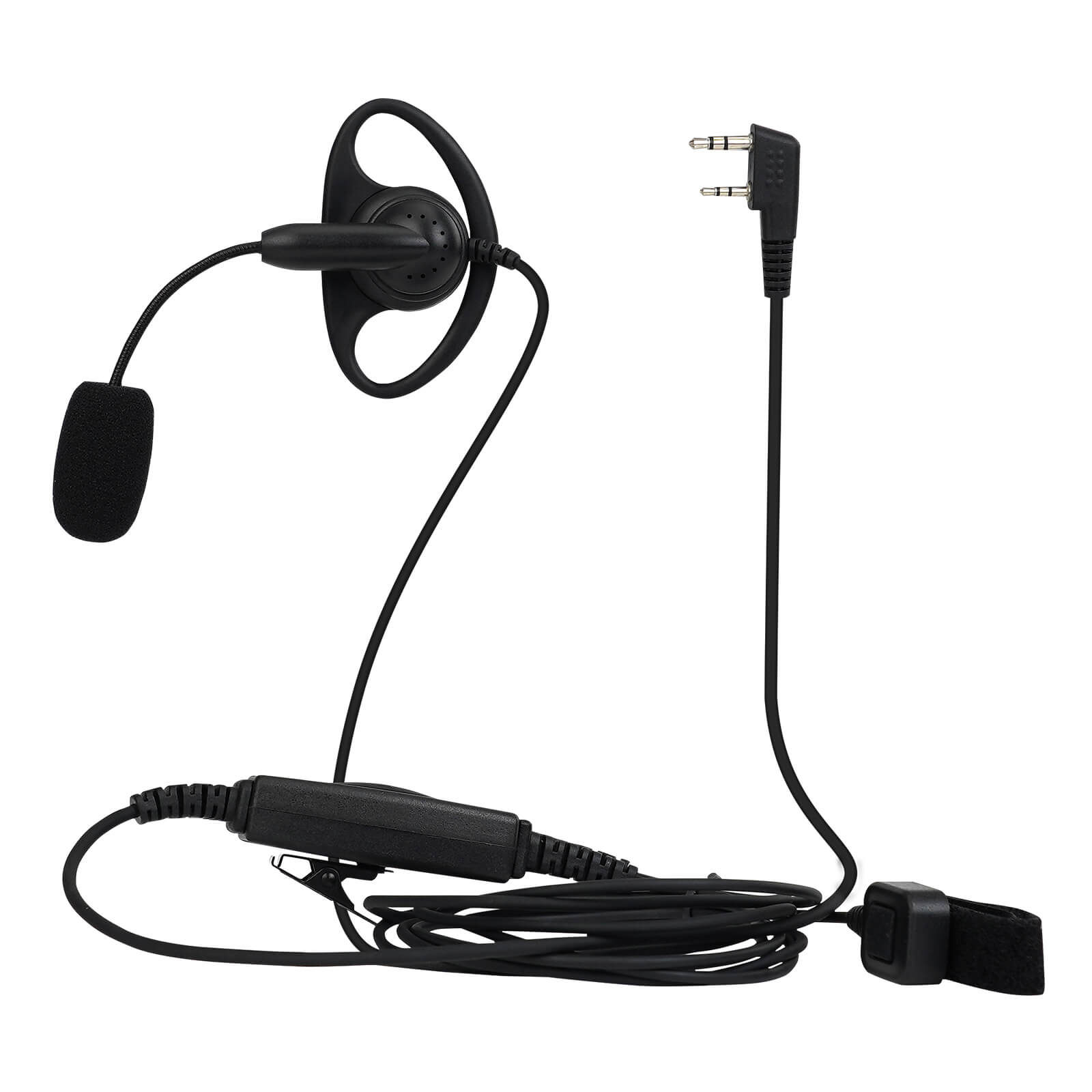

EEK020 Adjustable Boom Mic D-Ring Earpiece Dual PTT Kenwood 2Pin
KENWOOD 2Pin connector plug
2-wire design

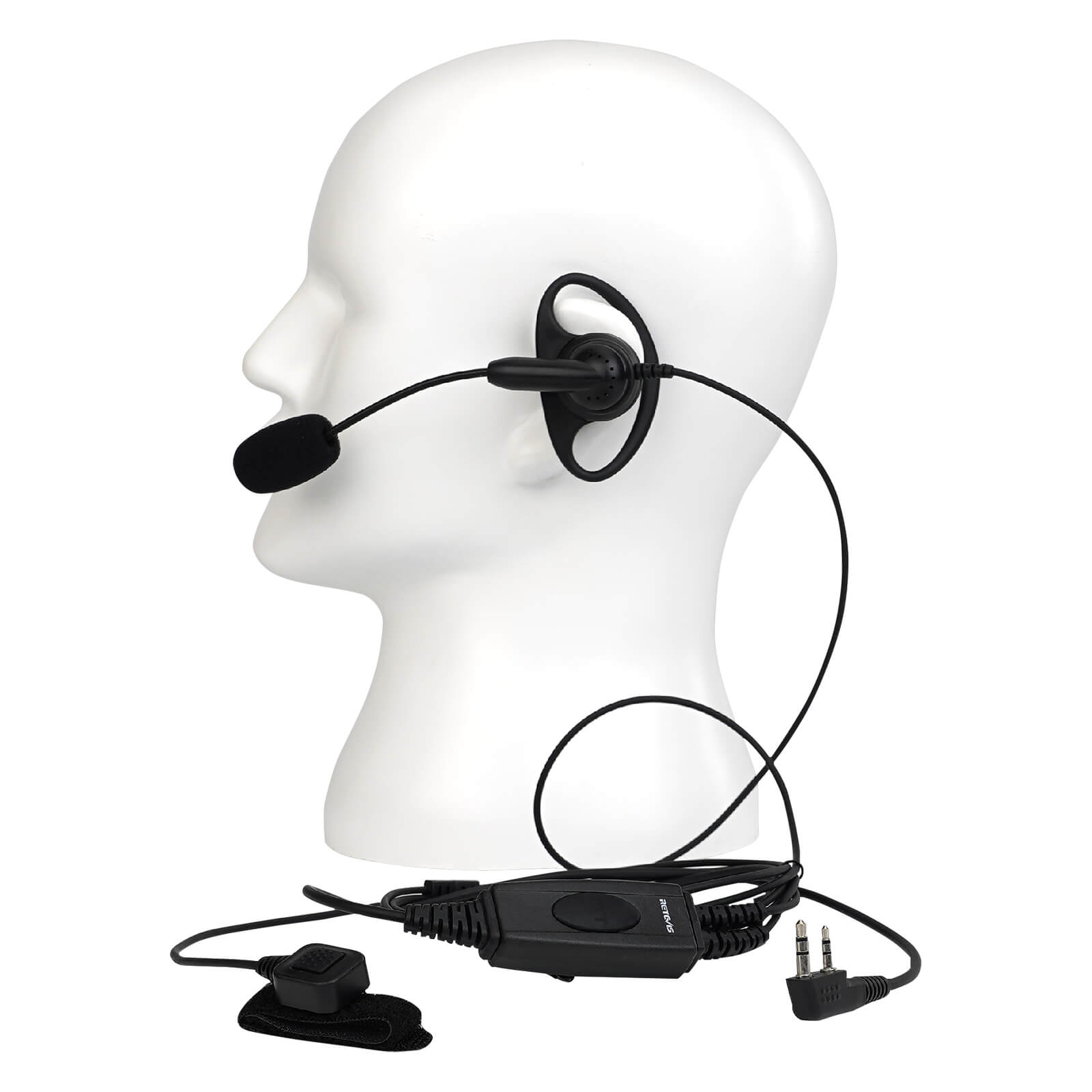

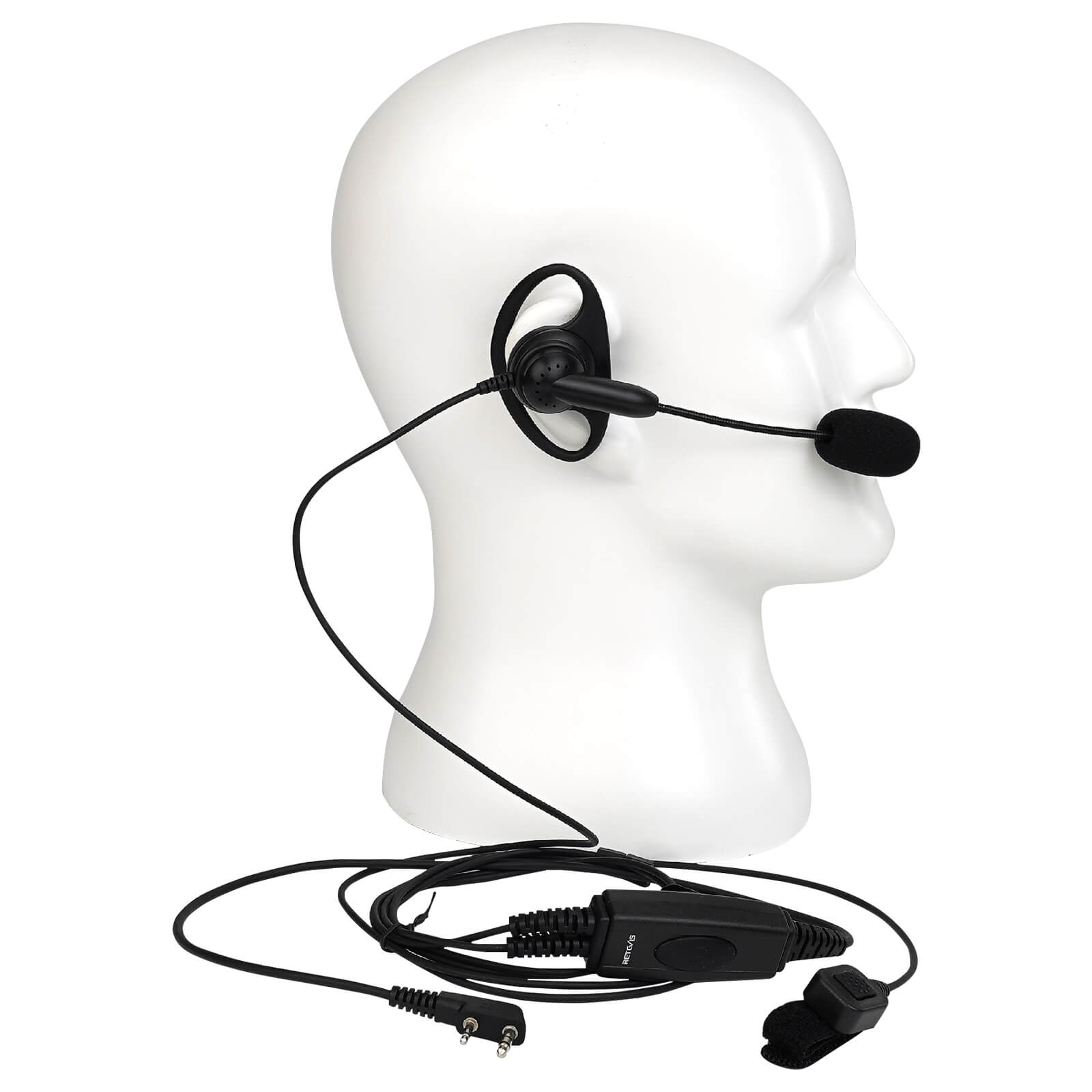

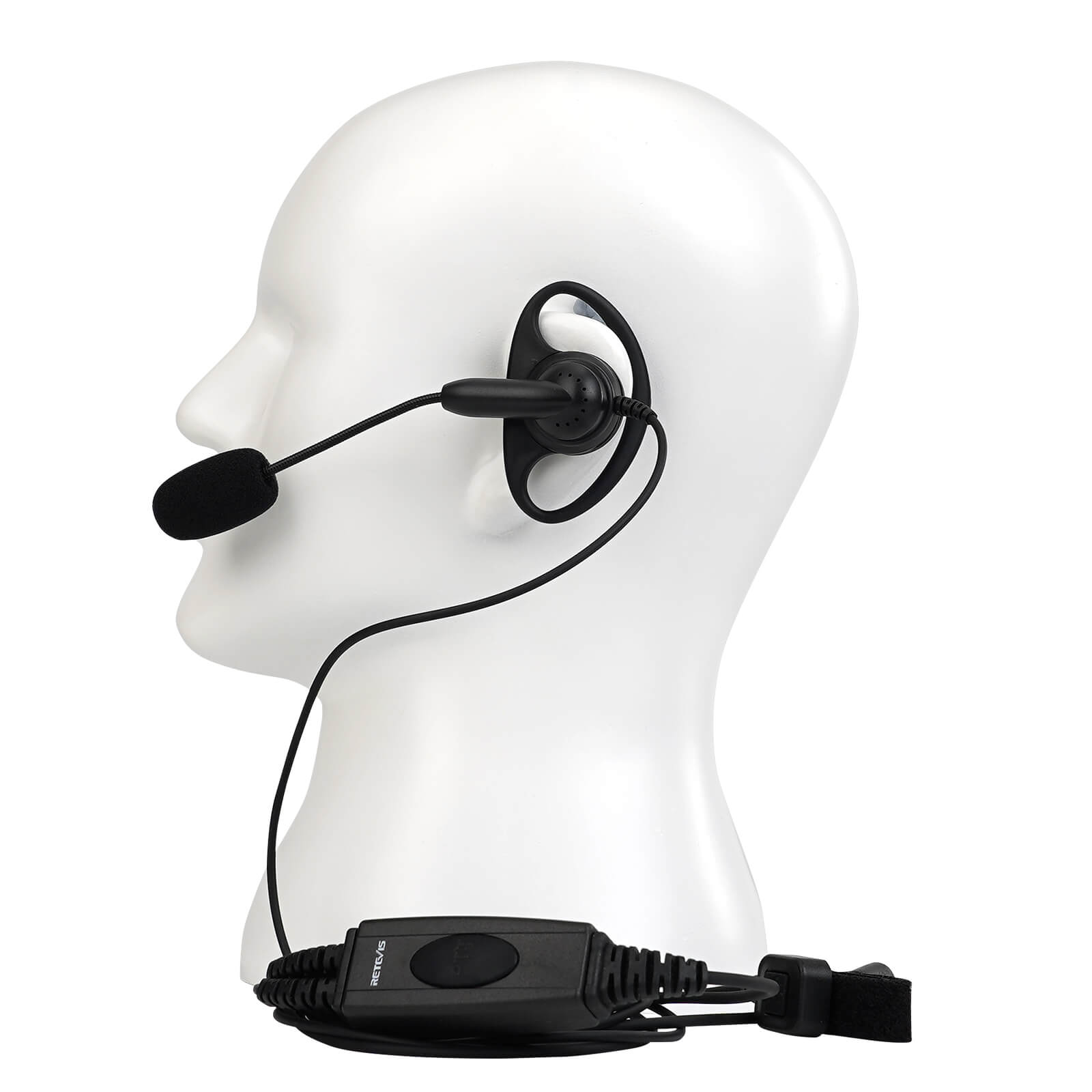

Boom Mic D-Ring
EEK020 Adjustable Boom Mic D-Ring Earpiece Dual PTT Kenwood 2Pin
Features:
- All of our items are brand new.

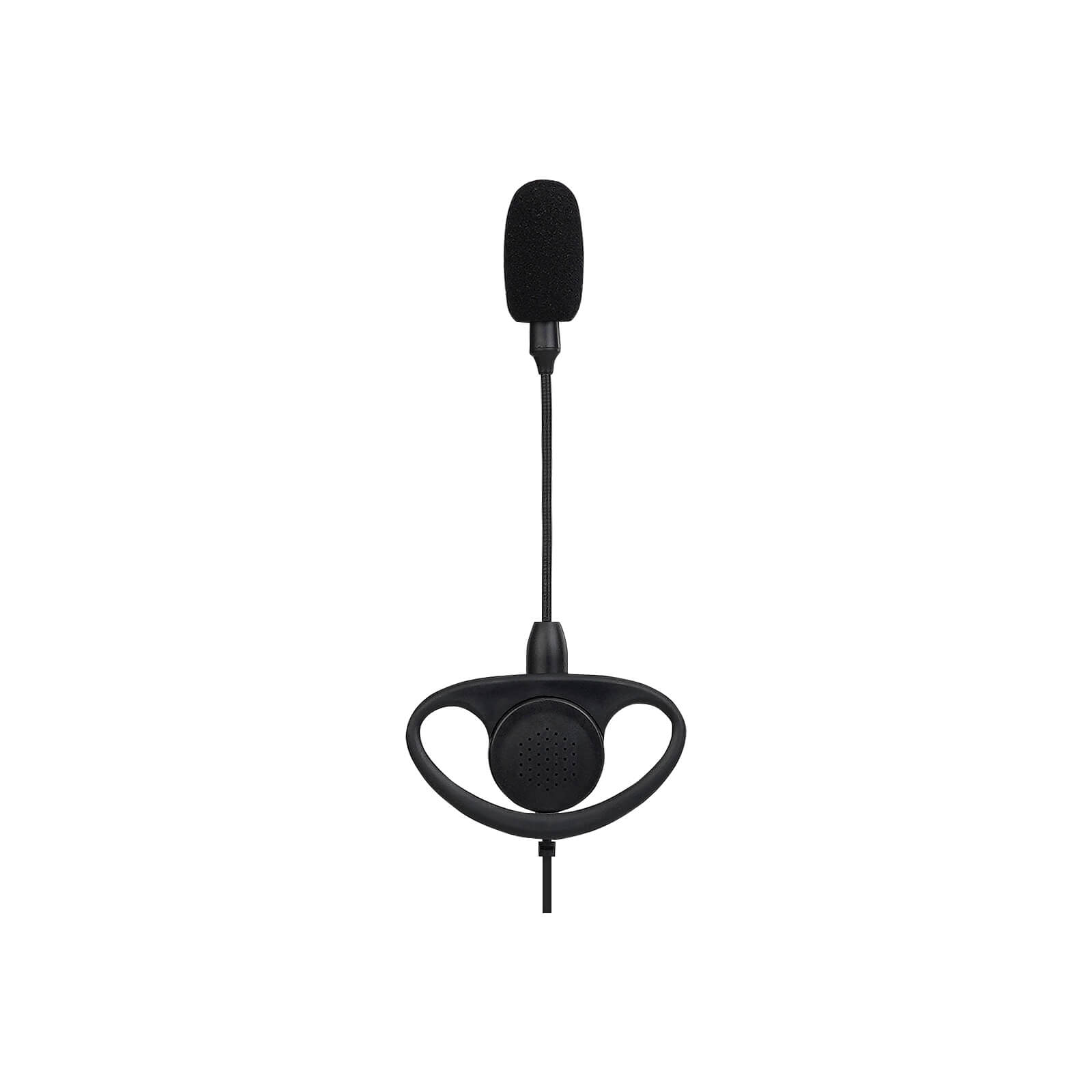

- Secure D-ring styleearpiece with flexible long boom microphone can be worn on either left or right ear for discreet communication.
- High-quality microphone and large speaker deliver clear and crisp audio.

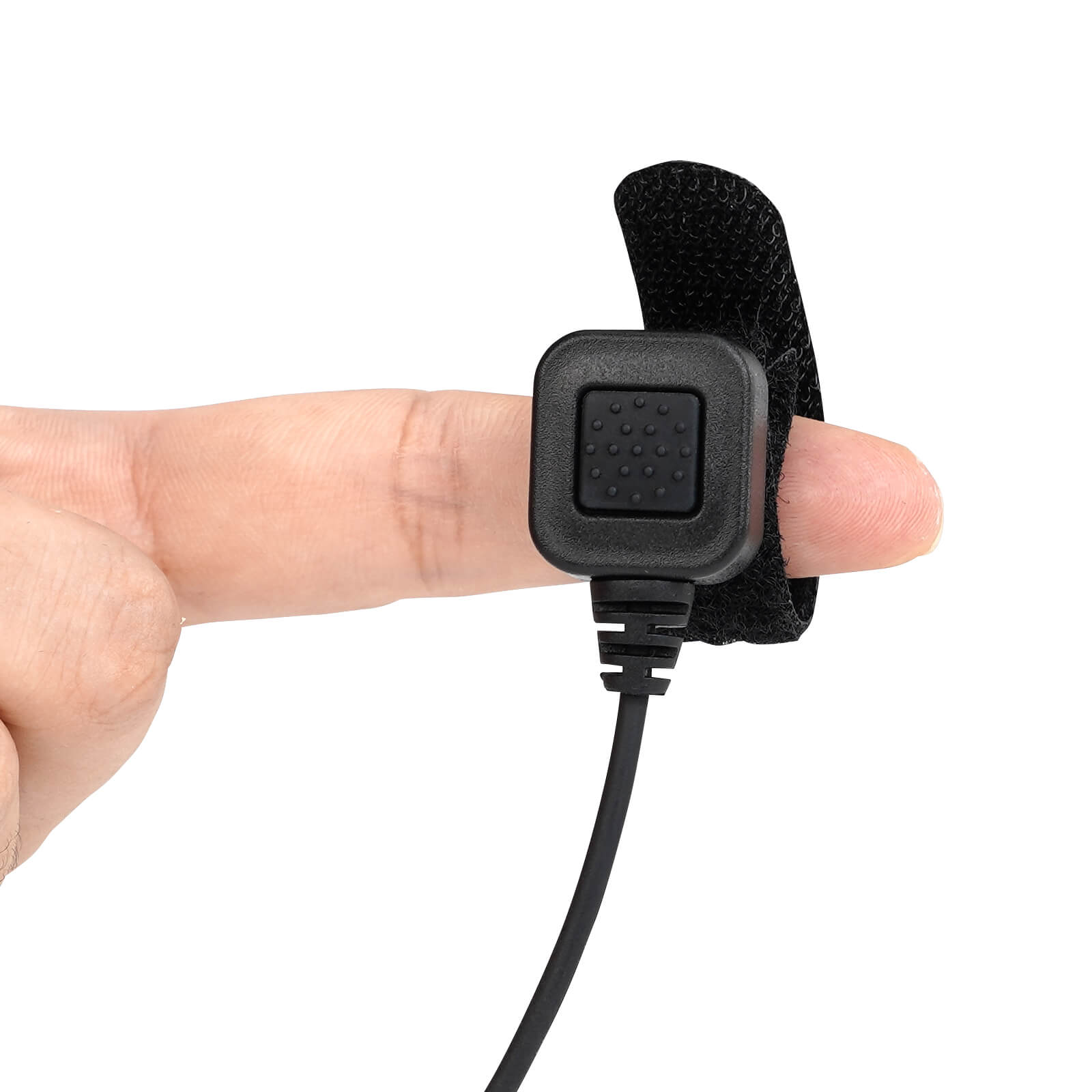

- 2-wire design with remote Velcro finger push-to-talk button for more flexibility.

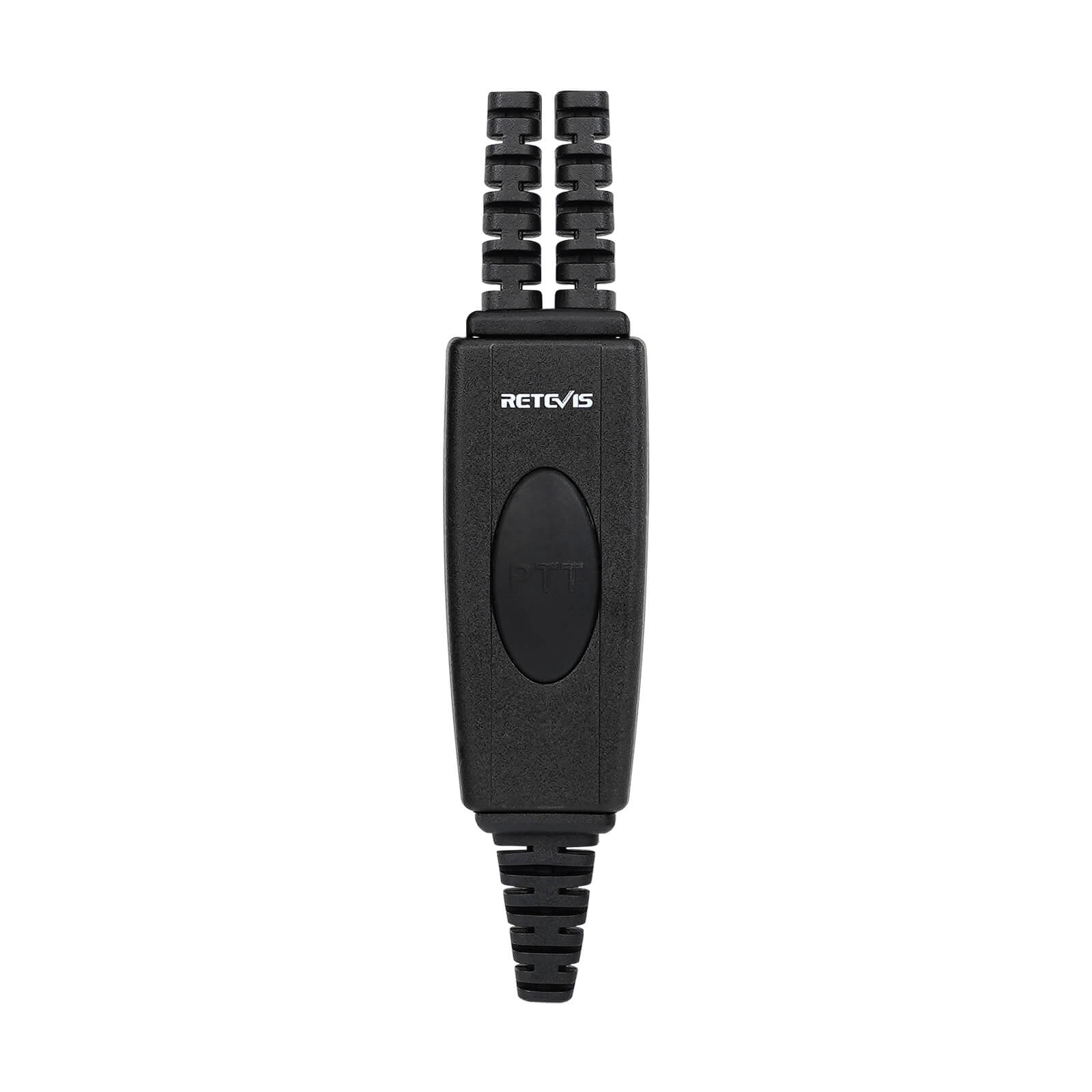

- Clip-on unit includes inline push-to-talk button and stainless steel clip that rotates 360ºfor easy use.
- High-grade strain reliefs help protect cables from excessive bending and pulling.
- Kenwood 2Pin connector plug for most of popular two-way radios.
Applications:
This 2-wire coiled top cable in-ear bud earpiece for two-way radios is suitable for a wide range of commercial and outdoor applications, such as: cycling, motorcycling, football coaches, law enforcement agencies, retail stores, big box stores, restaurants, event coordinators, security companies, casinos, resorts, night clubs, hotel personnel/housekeeping, film crews, museum security, crowd control at conventions and concerts, and more for discrete communications.
Specifications:
| Speaker | ||
| Dimensions | Φ22mm | |
| Impedance | 8Ohm±15%（AT 1.0KHz） | |
| Sensitivity | 126±3 dB/ 1KHz | |
| Distortion | <5% （Rated Input at 1KHz） | |
| Frequency Response | 200HZ~ 20KHZ | |
| Rated input power | 10Mw | |
| Maximum input power | 15Mw（For 1 Minute） | |
| Microphone | ||
| Types | Omnidirectional | |
| Dimensions | Φ6.0x5.0mm | |
| Sensitivity | -52±3dB/U=2V 1KHz | |
| Product Reliability Assurance Test | ||
| Storage / Work Environment | -40℃~70℃; 24H | |
| Drop | 152.4cm; 10 times | |
| Bending (Cable) | ±90°; 30cycles/min; 200g load; 10000 cycles | |
| Pulling (Cable) | Cable pulling force: 3Kgf;Plug pulling force :2Kgf; | |
| PTT Life | 50000 cycles | |
Compatible Two-Way Radio Models(Precautions: please be sure to refer to the correct model selection when purchasing. If you are not sure whether it is compatible or not, please feel free to consult us. Thank you!):
Compatible with all two-way radios with the Kenwood 2-pin K1 type connector (some examples below)
Retevis: H-777, RT21, RT22, RT-5R, RT-5RV, H-777S, RT1, RT2, RT5, RT7, RT15, RT17, RT18, RT19, RT23, RT26, RT27, RT28, RT43, RT46, RT50, RT52, RT53, RT56, RT66, RT67, RT68, RT71, RT76, RT80, RT81, RT85, RT97, RT27V, RT47V, RB17, RB18, RB19
BTECH: DMR-6X2, UV-5X3, GMRS-V1, MURS-V1
BaoFeng: BF-F8HP, UV-5R Series, BF-888S, UV-3R+, UV-82C, UV-82HP, UV-82 Series
Kenwood KPG: KPG27D,KPG29D,KPG48D,KPG49,KPG55D,KPG56D,KPG62D,KPG66D,KPG69D,KPG70D,KPG74D,KPG75D,KPG77D,KPG82DTH: TH-D7,TH-D7A,TH-D7AG,TH-D7E,TH-F6,TH-F6A,TH-F7,TH-F7E,TH-G71,TH-G71A,TH-G71E,TH-K2,TH-K2A,TH-K2E,TH-K2ET etc.
TK: TK-208/308,TK-220/320,TK-240/340,TK-240D/340D,TK-248/348,TK-250/350/353,TK-260/360,TK-260G/360G,TK-270/370 etc
AnyTone: AT-D868UV, AT-D878UV
TYT: MD-380, TYT MD-390
Arcshell: AR-5, AR-6
Radioddity: GD-77
Hytera Radio: TC-268, TC-268S, TC-270, TC-270S, TC-368, TC-368S, TC-370,TC-370S
PUXING Radio: PX-666,PX-777,PX-777 PLUS,PX-888,PX-999
WOUXUN Radio: KG-659, KG-669, KG-669 PLUS, KG-679, KG-679 Plus, KG-816, KG-819, KG-689, KG-689 Plus, KG-699, KG-UVD1P, KG-UV6D, UV-8D
Package Includes:
- 1x EEK020Adjustable Boom Mic D-Ring Earpiece
