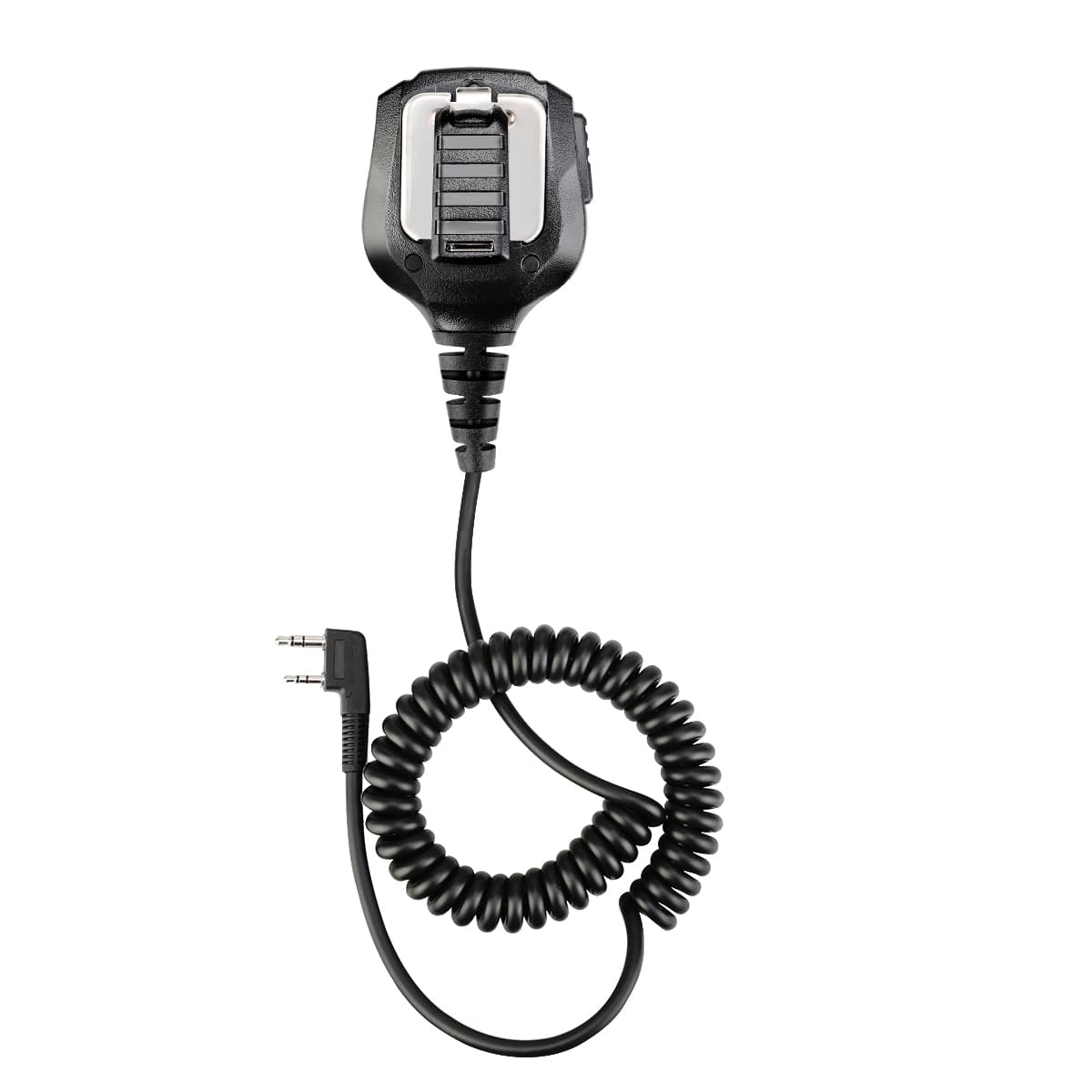

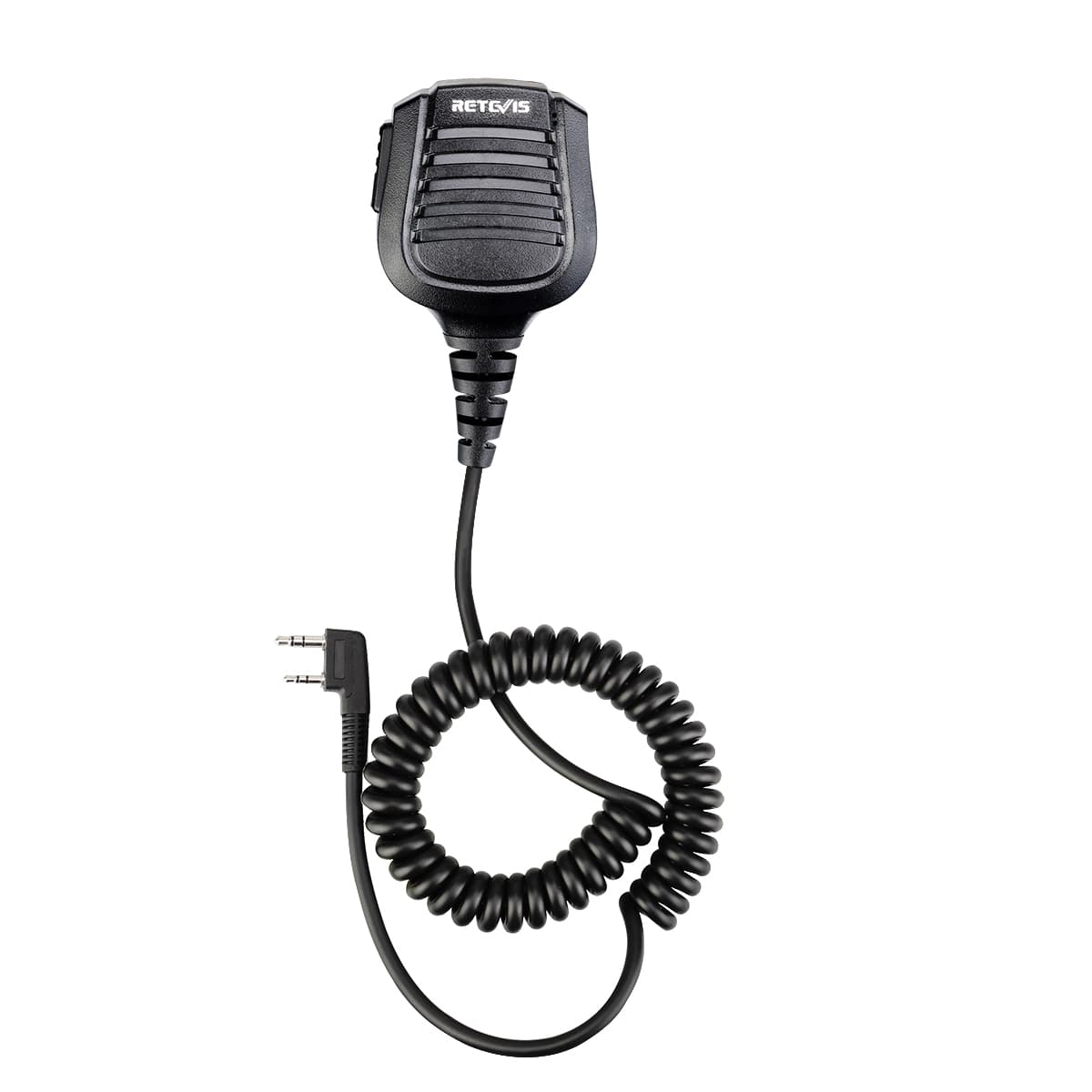

IP54 Waterproof Remote Speaker Mic Kenwood 2-Pin

0 Reviews/Write A Review

IP54 Waterproof Degree

With 3.5mm Listen-Only Audio Jack

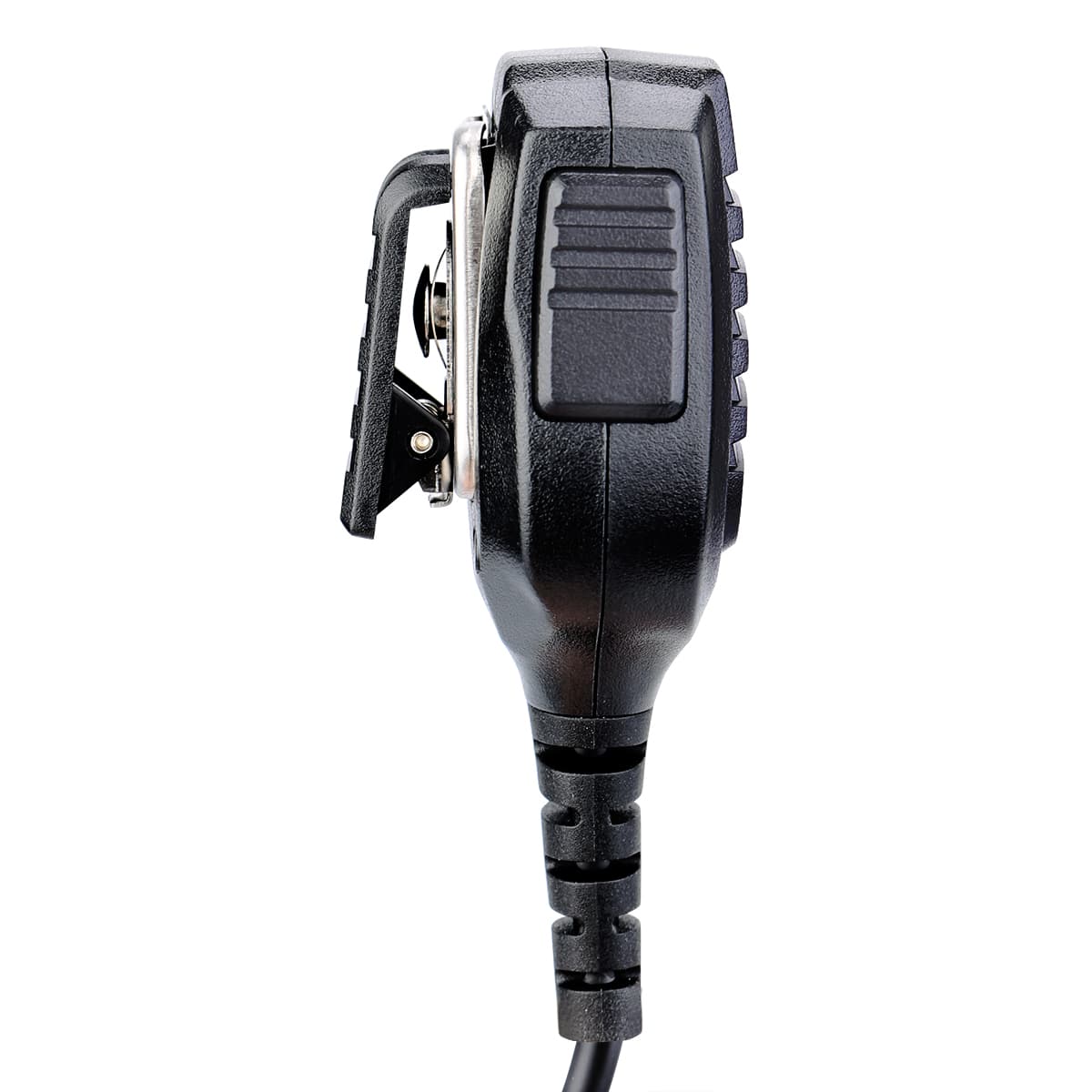

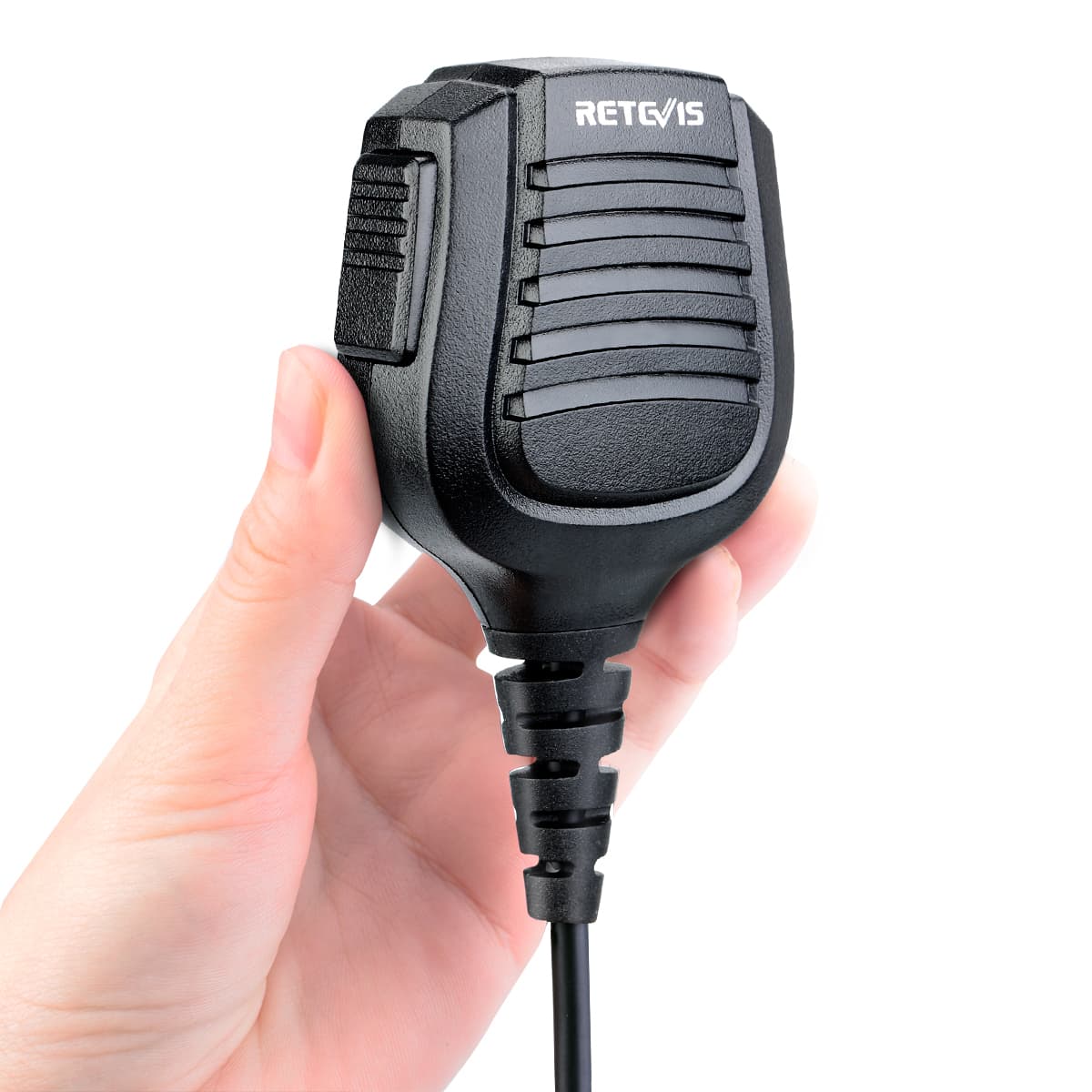

Comfortable PTT Button

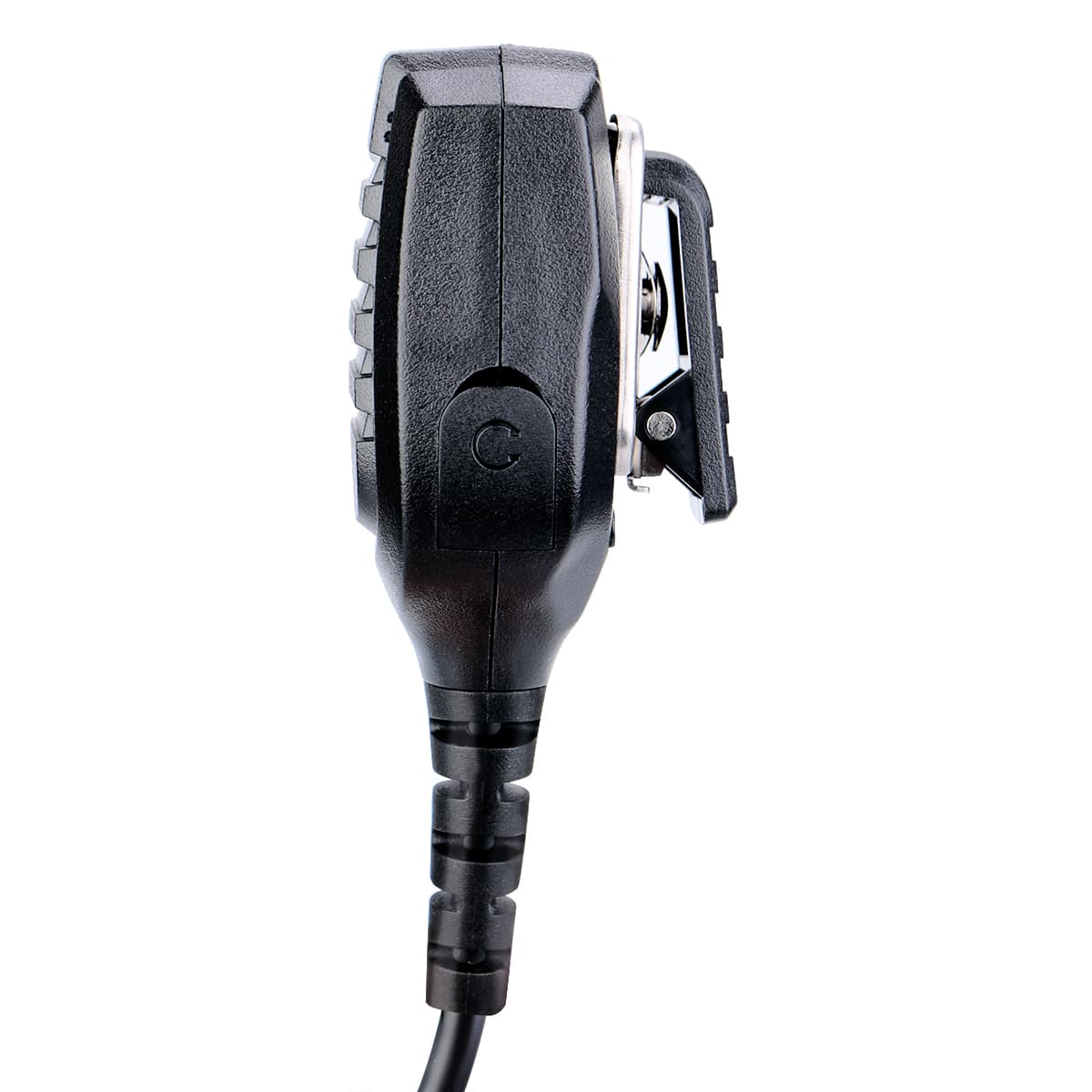

360° Rotatable Clip for Shoulder Strap

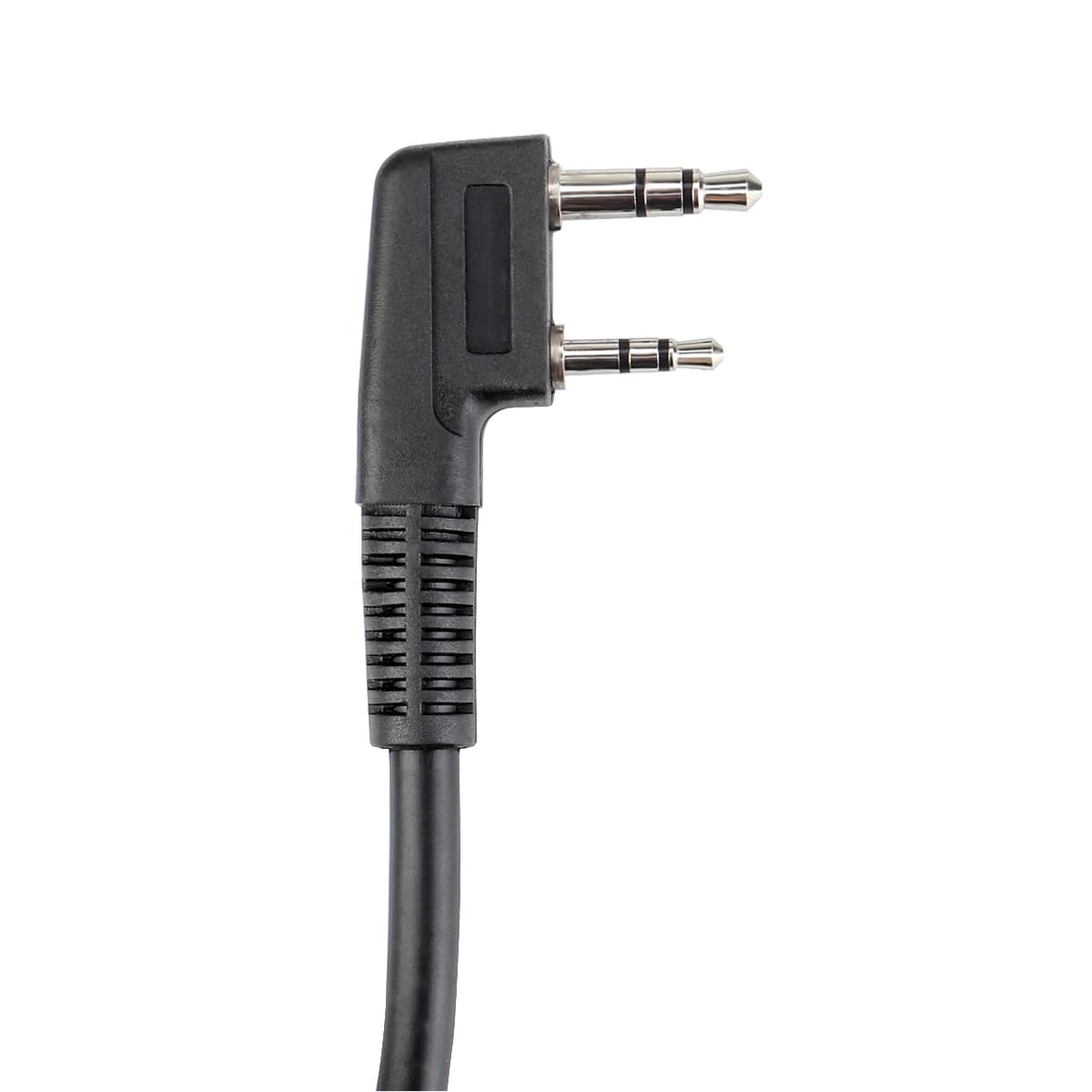

Kenwood 2-Pin Connector Plug

Price: $ 9.99
Get Wholesale Quote
Description Compatibilty FAQ Reviews

New Black Retevis 2 Pin Speaker Mic for Kenwood Retevis Baofeng TYT Two Way Radio

Description:

  • High quality louder speaker and microphone provide clear audio communication
  • Excellent PTT button design, not laborious.
  • PU cable is strong and durable, with high tensile strength.

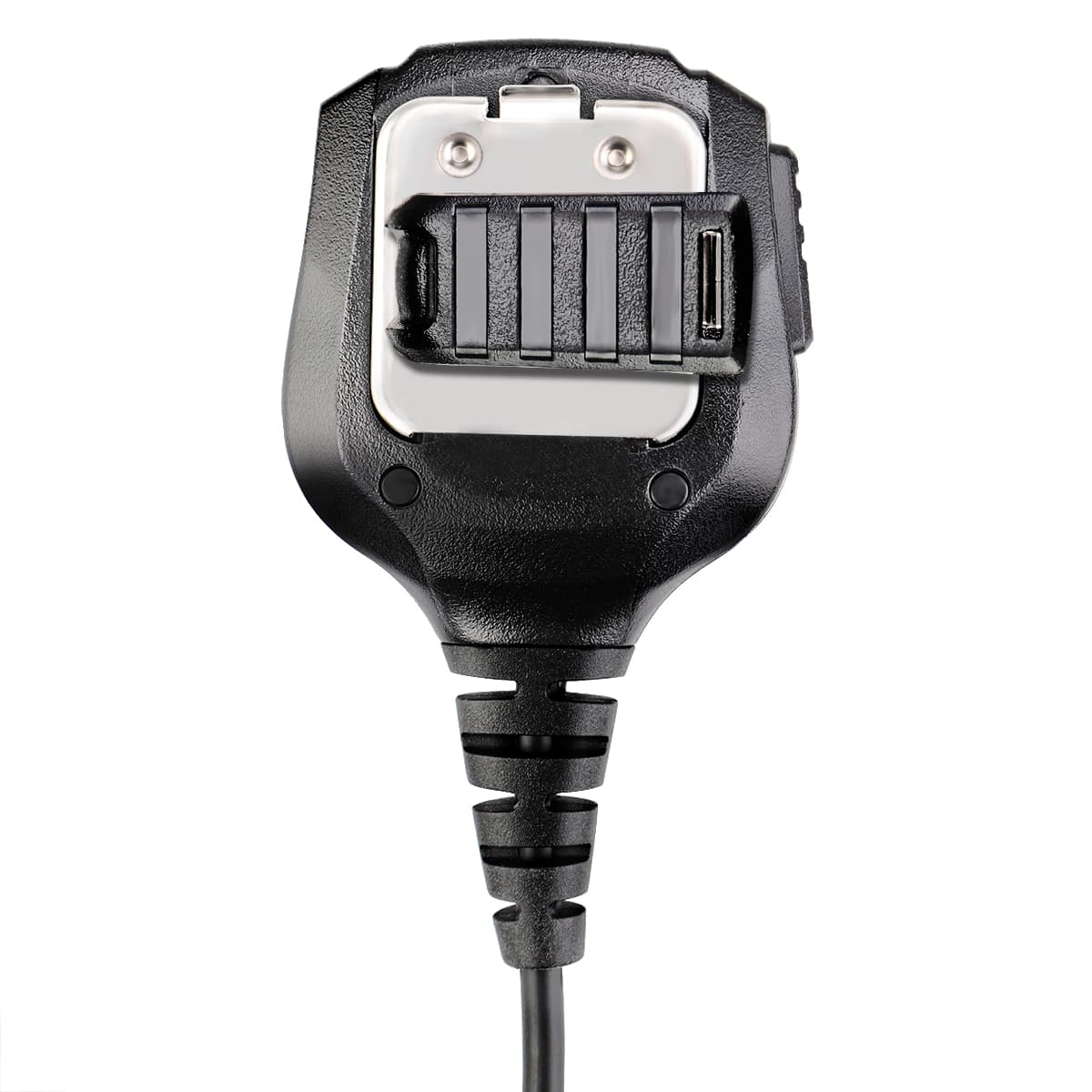

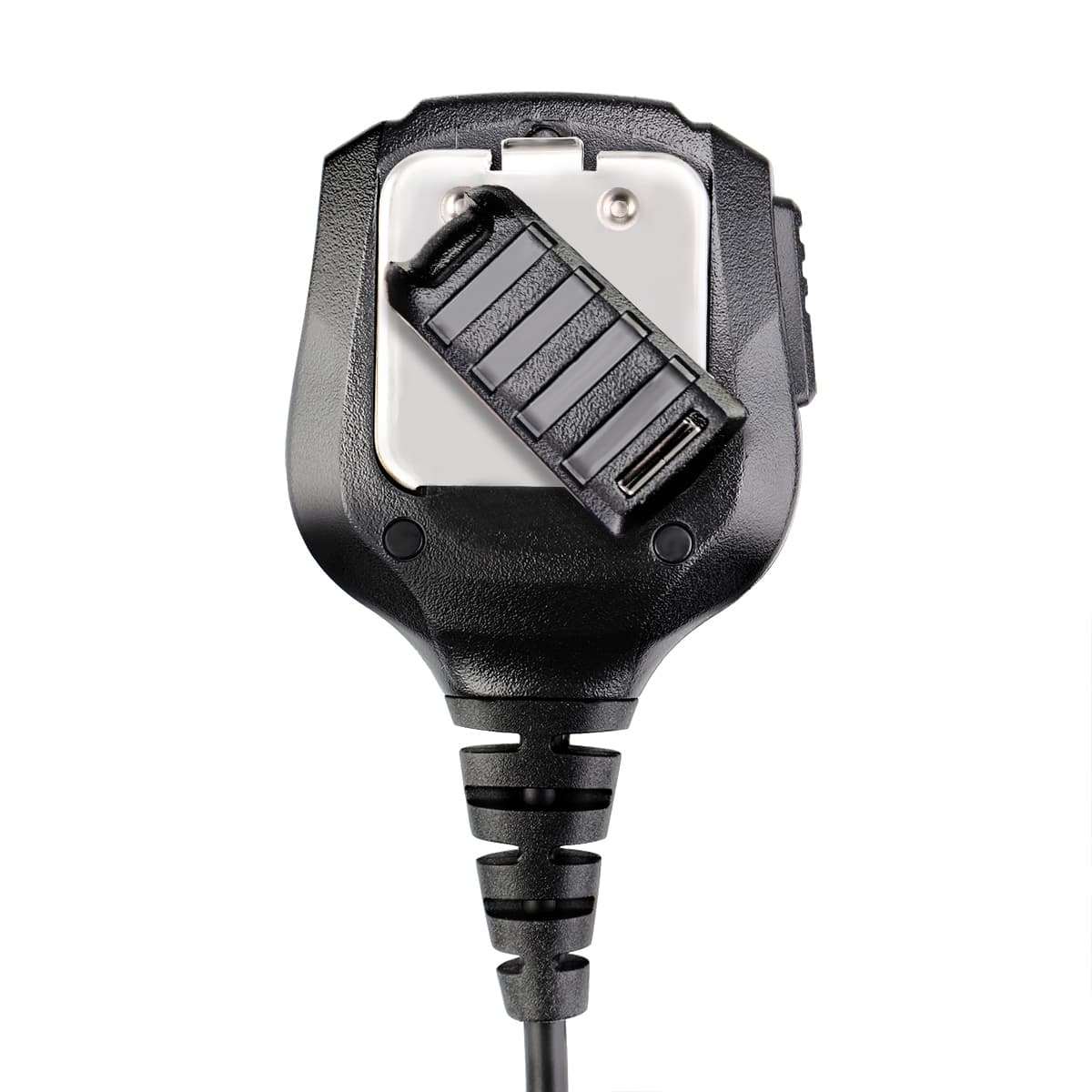

  • A strong rotatable metal clip has eight positions.

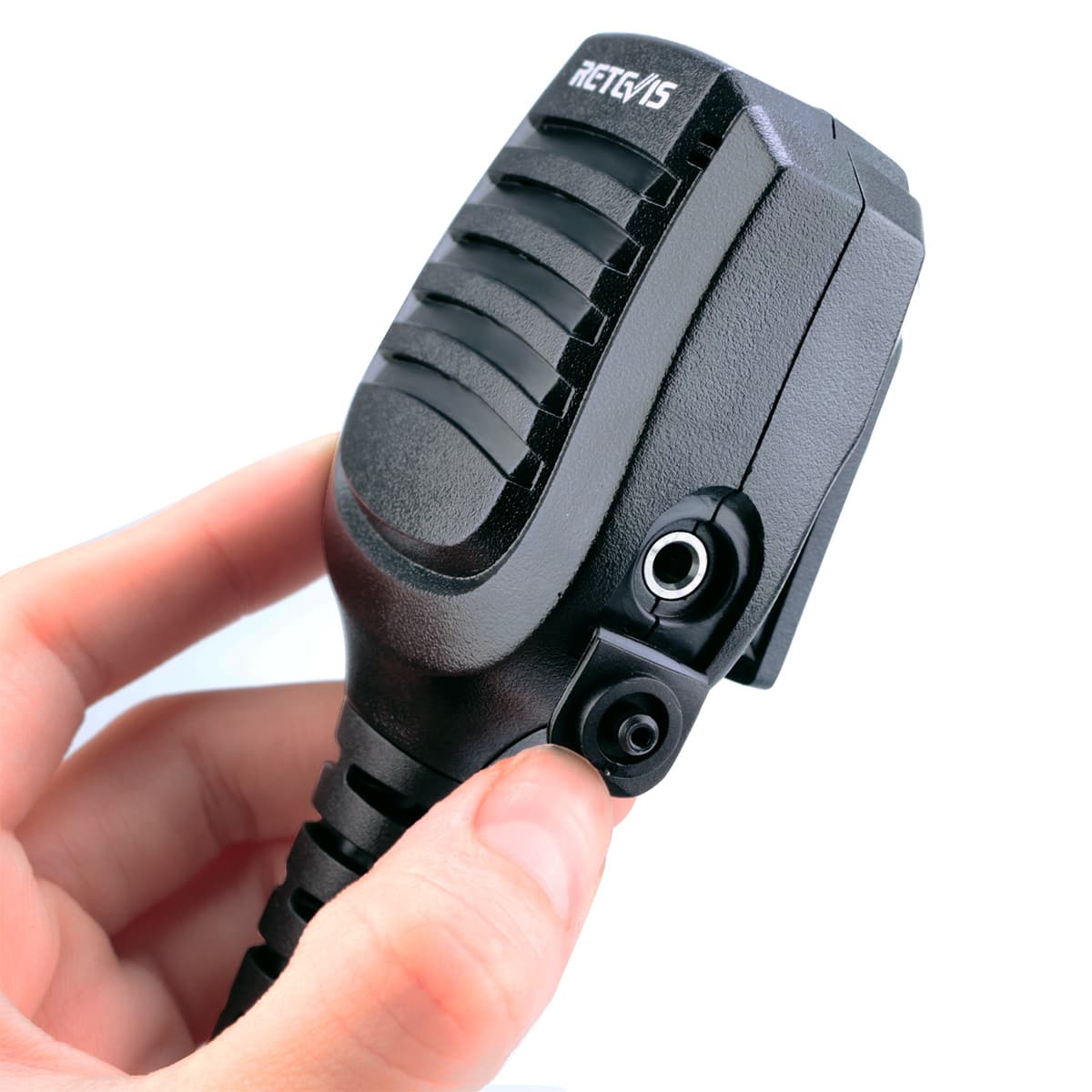

  • 3.5mm Audio Jack for the listen-only earpiece.
  • Color: Black
  • Cable length :20.08in/51cm(no stretch)
  • Weight: 150g
  • Waterproof: IP54

Specification:

Size

 Ø 12.5*2.0mm

Sensitivity

 92±3dB/1Watt. 0.5Meter

Impedance

8Ω±15% at 1000Hz

Frequency range

 (F0) ~20KHZ

Rated input power

 F0~9KHz

Maximum input power

 500mW

2>Microphone Specification

Size

Ø 6.0*2.7mm

Sensitivity

-30±3dB(0dB=1V/Pa,at 1KHz)

Impedance

2.2KΩ 1kHz (RL=2.2KΩ)

Frequency

20~20K Hz (0dB=1V/Pa, 1KHz)

Operating Voltage

 1.0V-10V (DC)

3>Cable

Diameter

Ø5.5mm

Material

 PU

Operating Temperature

 -30~120°C

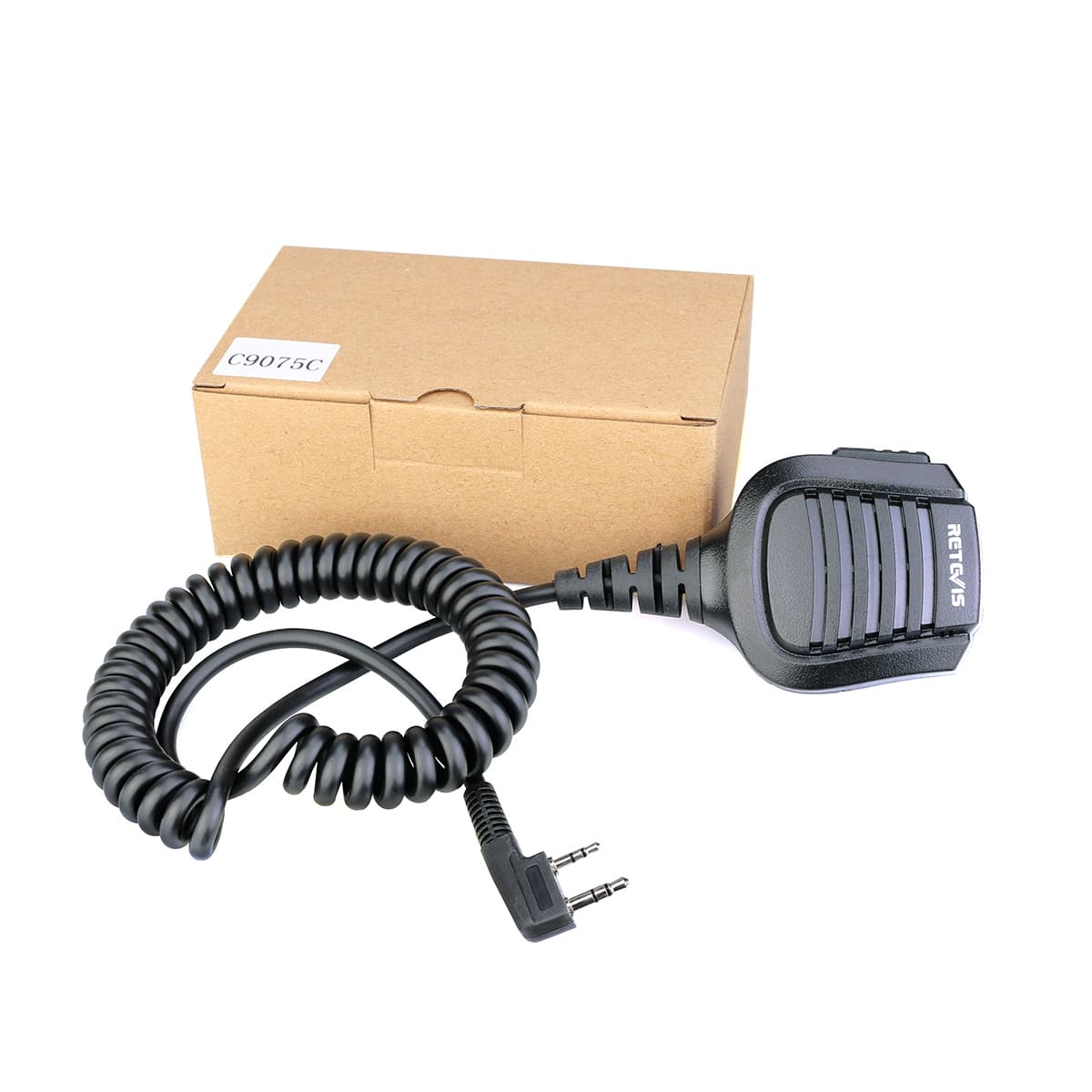

Package includes:

  • 1 x 2-Pin Speaker Mic for Kenwood Retevis

Compatible Radios

Type

Model

Retevis

H777 RT1 RT2 RT21 RT22 RT3 RT5 RT5R RT5RV RT6S RT7 RT8 RT81

For Kenwood KPG

KPG27D,KPG29D,KPG48D,KPG49,KPG55D,KPG56D,KPG62D,KPG66D,KPG69D,KPG70D,KPG74D,KPG75D,
KPG77D, KPG82D,KPG87D

For Kenwood TH

TH-D7,TH-D7A,TH-D7AG,TH-D7E,TH-F6,TH-F6A,TH-F7,TH-F7E,TH-G71,TH-G71A,TH-G71E,TH-K2,TH-K2A,
TH-K2E,TH-K2ET,TH-21,TH-21AT,TH-21BT,TH-22,Th-22A,TH-22At,TH-22E,TH-25,TH-26,TH-27,TH-28,TH31AT, TH41AT,TH41BT,TH-42,TH-42A, TH-42AT,TH-42E,TH-45,TH-46,TH-47,TH-48, TH-55,TH-75,
TH-77,TH-G71,TH-205, TH-215,TH-225,TH-235,TH-235A,TH-235E,TH-315,TH-415

For Kenwood TK

TK-208/308,TK-220/320,TK-240/340,TK-240D/340D,TK-248/348,TK-250/350/353,TK-260/360,TK-260G/360G, TK-270/370,TK-270G/370G,TK-272G/372G/373G, TK-278G/378G/388G
Pro-Talk,TK-430/431,TK-2100/3100
Pro-Talk,TK-2102/3102
Pro-Talk,TK2207,TK3207,TK-2160/3160
TK-980/2000/2107/2160/2178/2207/2307/2312/2360/2402V/3000/3107/3160/3178/3207/3207G/3230XLS/
3307/3312/3360/3402U/7302(H)/8302(H)
TK-U100/D240/D340/D740/D840
TK-5210(G)/5310(G)/5410/5410D/5220/5320
TK-D740H/D740/D840H/D840/5720/5820

For Kenwood
NX

NX-5200/5300/5400/200(G)/300(G)/NX210(G)/410/411/230EX/330EX/700H /700/800H/800/720(G)/
820(G)/920(G)/ 740G/740/840H/840/900/901/5700/5800/5900

BAOFENG

Almost All:UV5R,UV8,UV8D,UVB5,UVB6,UV-3R,A52 UV5RA,UV5RC,UV5RD,UV5RE,UV5RE+,UV6R,F8,F8+,UV-6 BF-480/490/320/V6/V7/V8/V85/658/520/530/999/888/777/666s/777s/888s/F8+/A5/388A/K5

POFUNG

UV-A52,UV-82,UV-8,UV-6,UV-5R,888s,5RA

For WOUXUN

KG-833/639P/819/679P/659P/689P/UV9D/UV8D/UV6D/UV66/UVD1PUV/889/D901

PUXING

PX-300M/325/328/333/358/359/555/558/508/666/628/578/568

TYT

TC-2000/8000/3000/5000/7000 TH-F2/F3/F5/F6/F7/F8/UV8000D/UVF11/UVF9/UVF8D/
TYT-300/500/600/800/900/9900
MD-280/380/446/390

Almost all with a two pin plug, Former pin diameter of 3.5mm and 2.5mm in diameter after pin, double pin from 8 min within,
11 mm center distance of 2 pin

Notice: If your radio model is not listed above, please don't hesitate to contact our customer service for help, we will recommend the correct one, thank you!!!
